Electronic Specialties

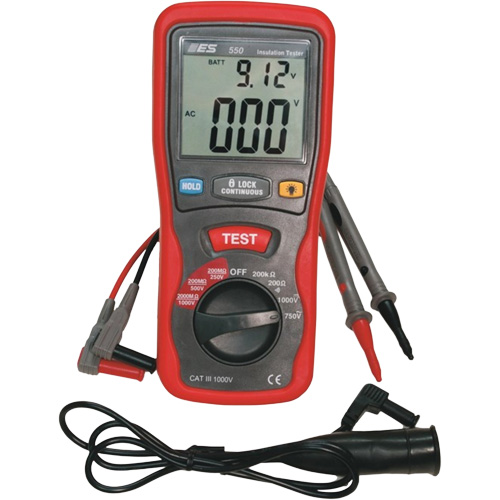

EV & Hybrid Insulation Tester

Model: FLV641

Mfr. No.: 550

  • EV & Hybrid Insulation Tester Chandler Sales

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

Includes

  • (6) AA Batteries
  • (1) Test Leads
  • (1) Blow Mold Case

Voltage AC Range

0-750 V

Voltage DC Range

0-1000V

Resistance Range

0-200, 2000

Insulation Resistance Range

200M, 2000M

Test Voltage

250V-200MegOhm, 500V-200MegOhm, 1000V-2000MegOhm

Continuity Test

Audible Beep ≤ 40 Ohm, Test Current ≤ 200 mA

Dimensions

200mm x 92mm x 50mm

Weight

700g (with Batteries)

Country Of Origin

China


  • Checks high voltage Circuits on EV's and hybrids for leaks to ground
  • It can supply 250V, 500V, and 1000V test voltages for doing complete insulation testing
  • Auto-ranging and can measure up to 200 MegaOhm with a resolution of 1K Ohm
  • These parts can leak high voltage to ground: Battery Pack, Power Inverter, DC-DC Converter, High Voltage AC Compressor, Power Steering Pump, Electric Motor, High Voltage Cables and Connectors
  • Meets IEC10101, CATIII 1000V
  • Large dual display with white LED backlighting
  • Test Hold function for easy operation
  • Over range indication
  • Low battery indication
