FLIR

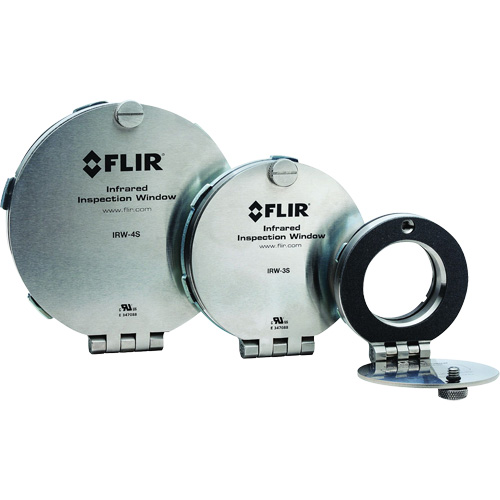

IR Windows 4" Infrared Camera Window with PIRma-Lock

Model: ID297

Mfr. No.: 19252-200

  • IR Windows 4" Infrared Camera Window with PIRma-Lock Chandler Sales

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

Manufacturer's Warranty

  • Limited Lifetime Warranty Against Manufacturer Defects

Diameter

4-1/2"

Body Material

Stainless Steel AISI 318

Max. Operating Temperature

500°F/260°C

NEMA Environment Type

Type 4/12 (Outdoor/Indoor)

Window Thickness

2 mm (0.07")

Crystal Insert Diameter

95 mm (3.74")

Overall Thickness

29.25 mm (1.15")

Viewing Aperture Diameter

89 mm (3.5")

Max. Pullout Strength

1678 kg (3700 lbs.)

Country Of Origin

Estonia

  • IR Windows add a barrier between you and energized equipment, protecting you from arc flash accidents
  • IR windows are easy to install, easy to use, and will help you work with greater confidence
  • You'll perform inspections more efficiently and reduce the threat of arc flash injury, all while staying in compliance with NFPA 70E requirements
  • FLIR IR Windows' broadband crystal lenses transmit short, mid, and longwave IR while also allowing illumination to shine through
  • FLIR's tried-and-true PIRma-Lock™ locknut technology holds the ring in place so there's no need for extra screws
