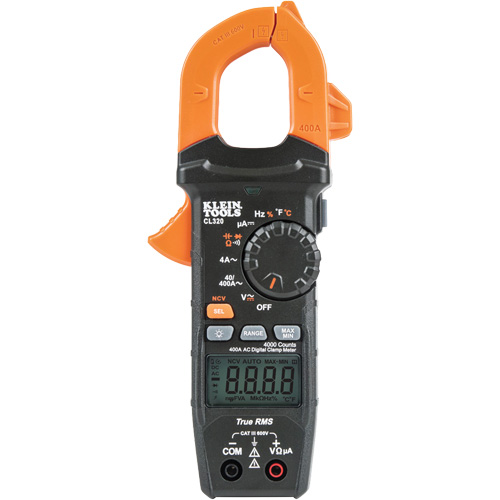

Klein Tools

HVAC Digital Clamp Meter, AC Auto-Ranging 400 Amp, AC/DC Voltage, DC Current

Model: ID702

Mfr. No.: CL320

  • HVAC Digital Clamp Meter, AC Auto-Ranging 400 Amp, AC/DC Voltage, DC Current Chandler Sales

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

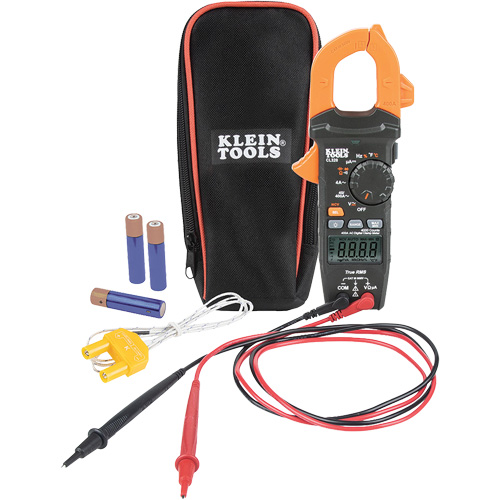

Includes

  • Digital Clamp Meter
  • Carrying Case
  • Instructions
  • Test Leadswith CAT III/CAT IV safety caps
  • Thermocouple
  • (3) AAA Batteries

Voltage Readings

AC/DC

Current Readings

DC

Jaw Size

1.6"

Display

4000 Count Backlit LCD

Capacitance

4000 µF

Ohms (Resistance)

40 MΩ

Voltage

600V AC/DC

DC Micro-Amp

200 μA

Temperature Range

-40° - 1832°F (-40° - 1000°C)

Current

400 A AC

Frequency

10 Hz -60 kHz

Country Of Origin

Vietnam

  • Clamp Meter measures AC current and NCVT via clamp and AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, and continuity via test-leads, and temperature with thermocouple
  • Non-contact voltage tester integrated into the clamp jaw
  • Backlit LCD for ease of viewing in low light
  • Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
  • Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands free operation
  • Measures temperature with a K-Type thermocouple probe
  • Auto-Range, Data Hold, and Max/Min value
  • Auto-power off after 10 minutes to conserve battery life
  • Low battery indicator and easily accessible battery compartment
  • Built to withstand a 6.6-Foot (2 m) drop
  • CAT III 600V, Class 2, Double insulation safety rating
  • Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
