Knipex

Punch & Chisel Set, 9 Pieces

Model: UBB120

Mfr. No.: 9R 400 009

  • Punch & Chisel Set, 9 Pieces Chandler Sales

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

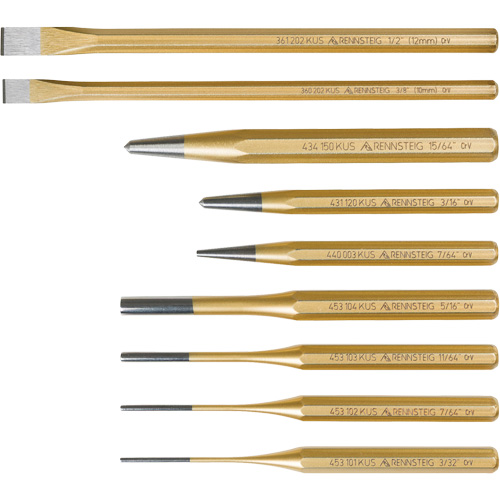

Includes

  • (1) Taper Punch
  • (2) Cold Chisels
  • (2) Center Punches
  • (4) Pin Punches

No. Of Pieces

9

Dimensions

1-3/8" W x 1-3/8" H

Material

Chrome Vanadium Steel

Surface Finish

Polished Tips

Tip Width

1/2" (9R 361 202 KUS), 3/8" (9R 360 202 KUS)

Colour

Gold

Tip Diameter

7/64" (9R 453 102 KUS and 9R 440 003 KUS), 5/16" (9R 453 104 KUS), 11/64" (9R 453 103 KUS), 3/32" (9R 453 101 KUS), 15/64" (9R 434 150 KUS), 3/16" (9R 434 120 KUS)

Country Of Origin

Germany

  • This set includes one taper punch, two cold chisels, two center punches and four pin punches
  • The octagonal shape is easier to grip when striking with a hammer and also prevents the tool from rolling away when placed on a surface
  • The material core design prevents mushrooming of the striking head
  • Tools are tempered to a hardness of 54 to 58 HRC - not just at the tip but throughout the entire length of the tool
  • Complies with DIN 7255 standard
  • Taper punch helps align holes in parts for easier alignment of bolts
  • A taper punch can be used to loosen rusted or corroded parts
  • Chisel features a hand ground sharpened edge designed to cut and shear cold metal; Striking head is turned and chamfered
  • For exact marking of a drill point and guidance of the drill bit
  • Center punches are used to create permanent marks or locations when disassembling engine parts
  • Pin punches are used to install and drive pins out of holes
  • All edges are rounded to prevent damage to the workpiece
