Mastercool

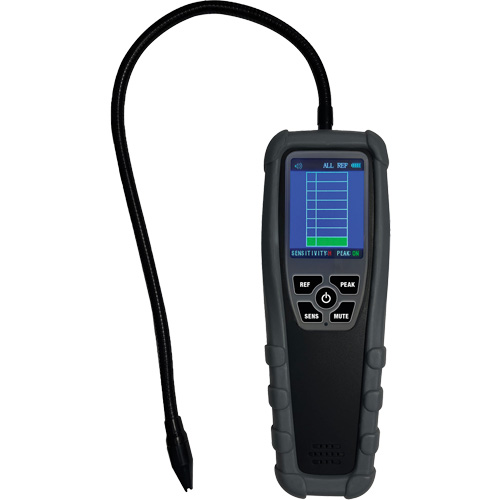

Black Series Infrared Refrigerant Leak Detector

Model: FLV277

Mfr. No.: 55600-A

  • Black Series Infrared Refrigerant Leak Detector Chandler Sales

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

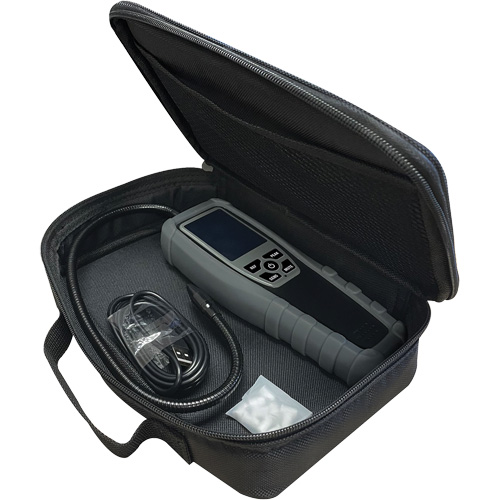

Includes

  • 55600-A infrared refrigerant leak detector
  • Charging cable
  • Replacement filters
  • Zippered Carry Case

Sensor

UV spectrum absorption

Sensor Life

10 years

Alarm Modes

Visual & Audible

Display

High resolution bright TFT active matrix LCD

Operating Temperature

-10 to 52˚C (14 to 125.6˚F)

Operating Relative Humidity

50% to 85% RH

Storage Temperature

-20 to 60˚C (-4 to 140˚F)

Probe Length

14.37"

Country Of Origin

United States

  • Innovative infrared sensor offers an extended sensor life of 10 years
  • Easily select high, medium and low sensitivity levels with a maximum sensitivity up to 0.14 oz/yr
  • Smart sensor technology allows for the selection of popular refrigerants such as R134a, R404a, R407C, R410A and R1234yf with a default setting (ALL REF) that detects all HFC’s, HCFC’s, CFC’s, PFC’s and HFO’s
  • Advanced TFT screen provides clear and easy readings using color graphics that show leakage, sensitivity, battery level and sensor fault indicators
  • Peak button indicates the maximum leak detected during measurements
  • Auto-off function will automatically shut down the unit after 10 minutes
  • Designed to meet EN14624, SAE1627, SAE2791 and SAE2913 standards
  • Responds to all halogenated refrigerants including but not limited to: HFC’s (R134a, R410A, R407C, R417A, R404A, R507, R23, R508B, R152a, R32), HCFC’s (R22, R123, R124, R141b, R142b, R402A, R402B, R408, R409), CFC’s (R11, R12, R13, R500, R502, R503), PFC’s (PFC-14, PFC-116, PCF-218), and HFO’s (R1234yf)
  • Responds to blends such as R410A and R407
  • Detects SF-6 in high voltage circuit breakers
  • Detects halogen gases in fire-extinguishing systems
  • Automatic shutdown after 10 minutes without operation
