Reed Instruments

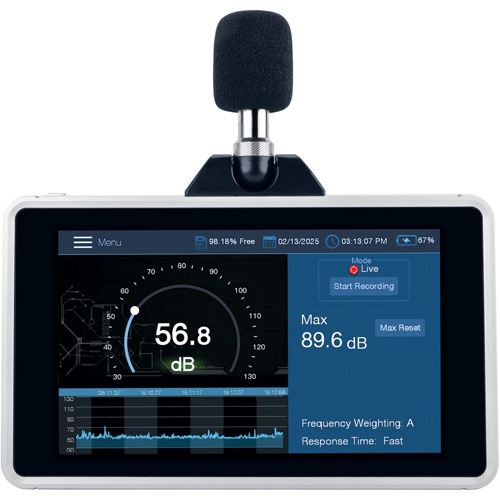

Desktop/Wall Mount Sound Level Meter, 30 - 130 dB Measuring Range

Model: ID569

Mfr. No.: R8075

  • Desktop/Wall Mount Sound Level Meter, 30 - 130 dB Measuring Range Chandler Sales

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Frequency Weighting

A/C

Measuring Range

30 - 130 dB

Data Logging / Not Data Logging

Data Logging

Dynamic Range

50 dB

Resolution

0.1 dB

Response Time

500 mS

Frequency Range

31.5 Hz to 8 kHz

Operating Temperature

14 to 104°F (10 to 40°C)

Country Of Origin

China

  • This Sound Level Meter is a versatile and reliable tool for monitoring and analyzing noise levels between 30 and 130 dB
  • The R8075 features a high-resolution color TFT touchscreen display, user-selectable recording times, programmable alarm set points, a built-in desk stand and wall mount bracket
  • High accuracy of ±1.4 dB meets Type 2 standards
  • Fast & Slow time weighti
  • Digital analog bargraph
  • 7" (178mm) high-resolution color TFT LCD (1024 x 600 pixels)
  • User adjustable high and low alarms
  • Internal 16GB memory stores data points in CSV form
  • User selectable sampling rate from 1 second to 24 hours
  • Internal time and date stamp
  • Rechargeable Li-ion battery
  • Built-in desk stand and wall mounting bracket
  • Low battery indicator
